Our ESD tiles are used to dissipate static from floor. This protects sensitive equipment. The tiles are available in various patterns and designs. They are available in standard sizes: 600 X 600mm, 610 X 610mm, and 900 X 900mm with thickness of 2mm and 3mm.
The tiles are resistant to 5% of acetic acid, hydrochloric acid, nitric acid, ammonia solution, and ethyl alcohol. They are also resistant to soyabean oil, kerosene, cement paste, milk, and soy sauce.
· Homogeneous · Pressure-resistant · Wear-resistant · Corrosion-resistant
Our Antistatic PVC Tiles / ESD Static Dissipative Vinyl Tiles are specially engineered to provide effective and reliable static control in electrostatic-sensitive environments. These tile-format floors are made from high-quality PVC materials with embedded conductive particles to ensure consistent ESD protection across the surface.
Key Features:
Material: Antistatic PVC
Format: Tile (rigid sheet form)

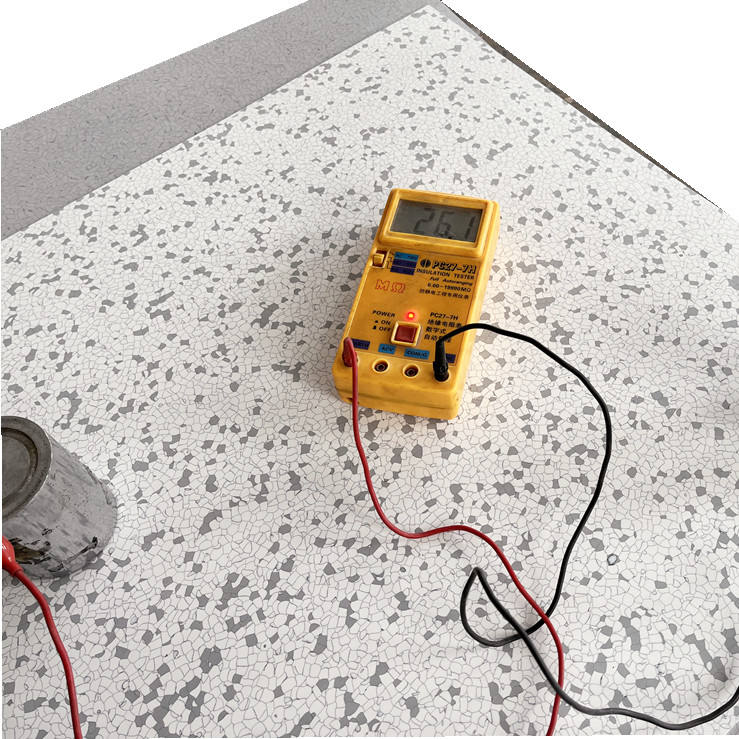

Surface resistance: 10⁶–10⁹ Ω
Strong dimensional stability and compression resistance
Durable, anti-slip, and easy to maintain
Available in multiple colors and patterns
Optional conductive or static-dissipative versions
Applications:
Ideal for electronics factories, cleanrooms, laboratories, assembly areas, data centers, and other ESD-sensitive environments.
Herzesd is a professional supplier of full-range ESD products and custom static protection for electronics, labs, and industrial environments.
