ESD Magazine Rack – PCB Storage Rack for SMT and Assembly Lines
| Description | HZ-2610 | |
| Contour Size | (L×W×H)mm: 630×530×570 | |
| Storage slot | 50pcs of Plates can be stored | |
| The specification of PCB plates | 630×(50－460)mm | |
| Guide slot of side plate | Depth 3.5mm, Width 6.5mm, Pitch 10mm | |
| Material | Top and bottom Base are metal base | |
| Fix method | Screw adjustable | |
| Side plate | Five pieces assembled | |
| Weight | 12.0KG | |
| Temperature | 80 ℃ and 120℃ are available. | |

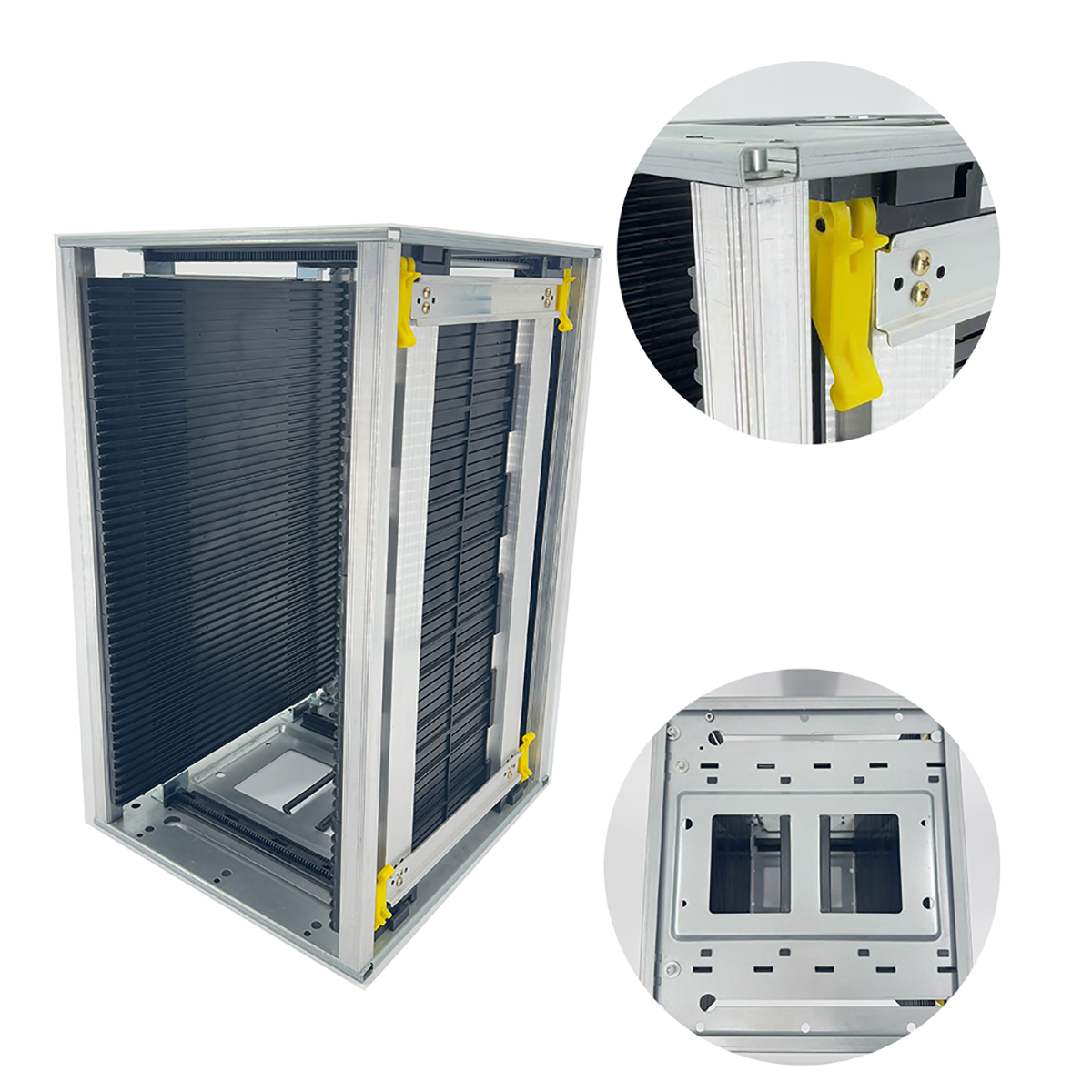

This ESD-safe PCB magazine rack is specially designed for storing and transporting printed circuit boards (PCBs) during the SMT process and assembly line operations. Constructed from high-quality conductive plastic and aluminum, it ensures reliable electrostatic discharge (ESD) protection, making it ideal for use in electronics manufacturing environments.
The rack features adjustable side guides, allowing it to accommodate various PCB sizes. It’s available in multiple configurations, including top-opening and front-loading styles, to suit different workflow needs. The modular design allows for stacking and easy storage, while the durable structure supports repeated use in industrial settings.
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots |
Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Total Customize Available
Packing:
