ESD Anti-Fatigue Mat – Dual-Layer Durable PVC Construction

ESD Anti-Fatigue Mat – Dual-Layer Durable PVC Construction

Overview
Recommended Products

This ESD anti-fatigue mat is designed to provide both reliable static protection and superior ergonomic comfort. Positioned between our durable and economical series, it combines enhanced performance with great value.

Key Features:

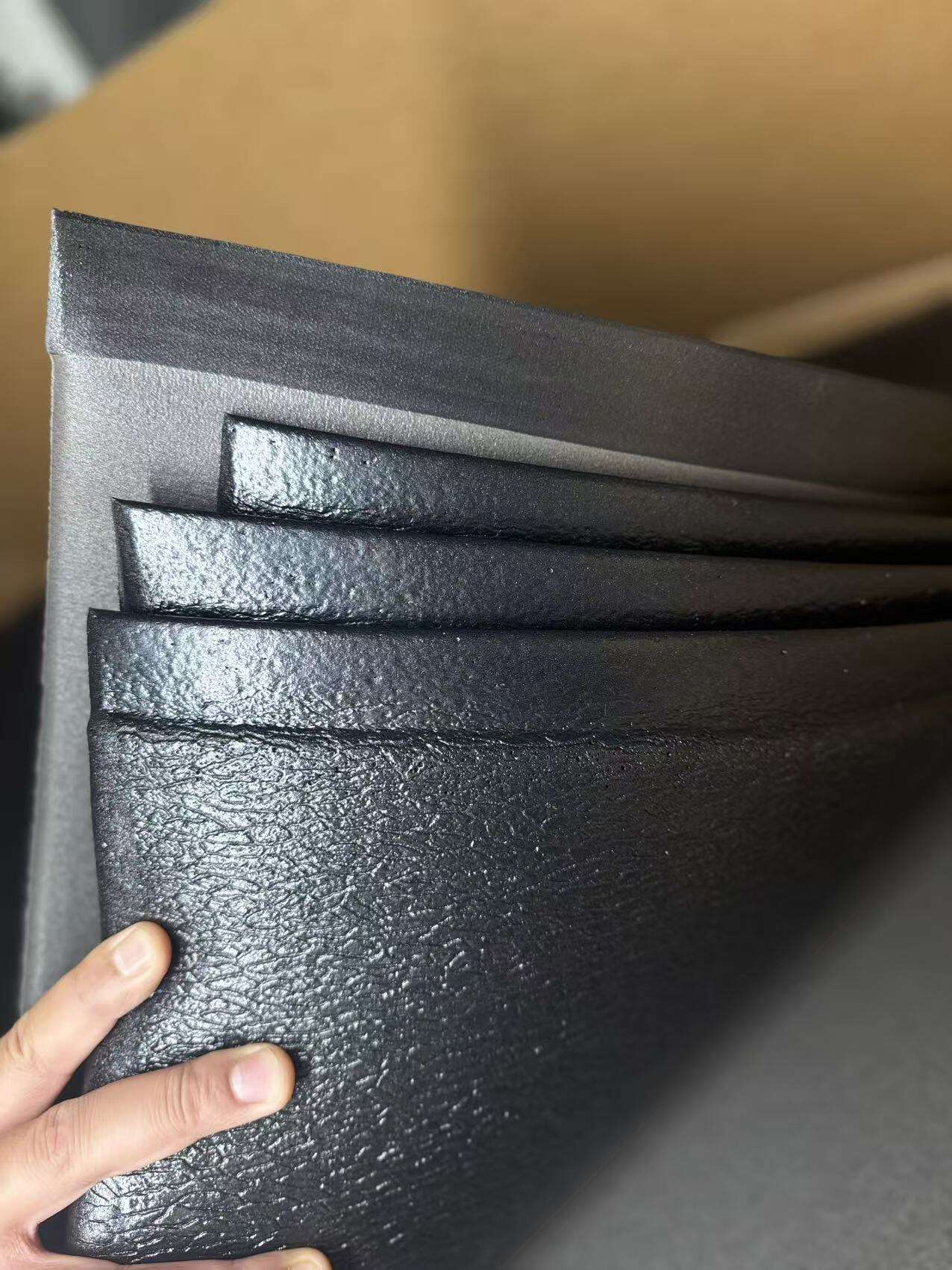

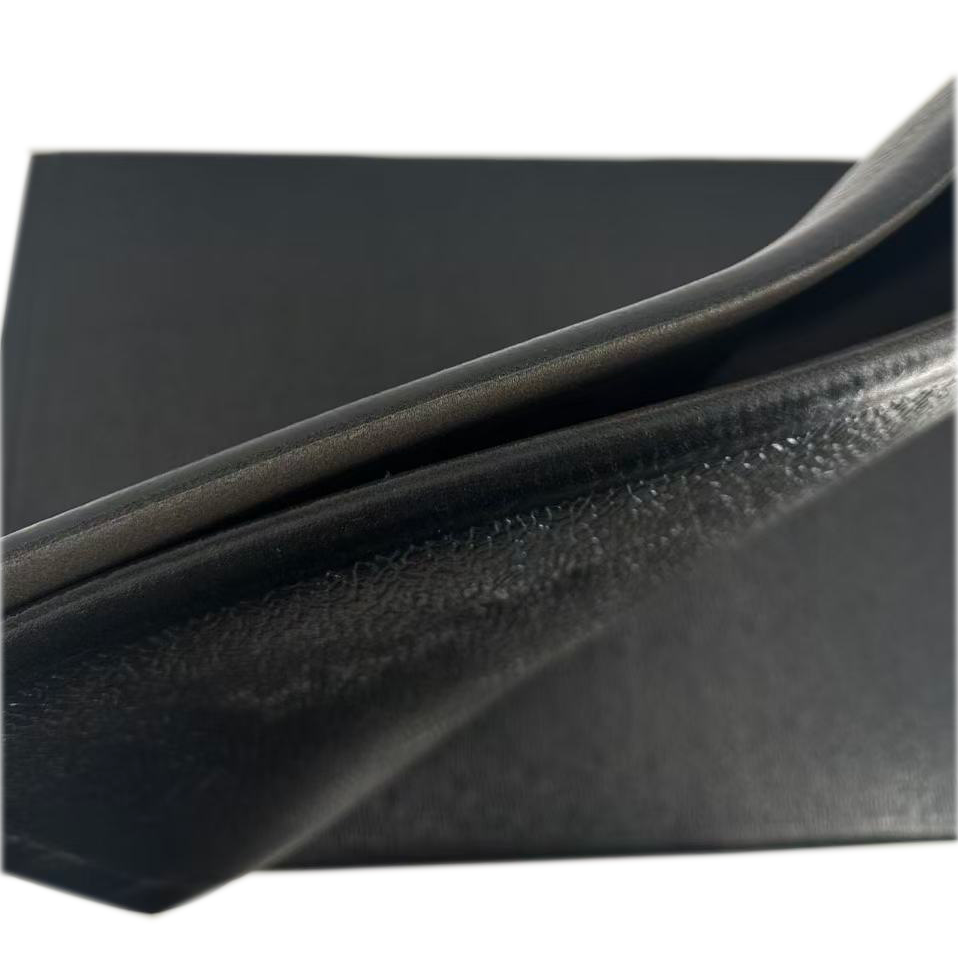

Dual-Layer PVC Design: The upper layer is a highly wear-resistant surface, while the lower foam layer provides excellent cushioning. Both layers are made of conductive PVC material, offering inherent static dissipation.
Patented Open-Cell Structure: Effectively disperses pressure, promotes leg circulation, and reduces fatigue from prolonged standing.

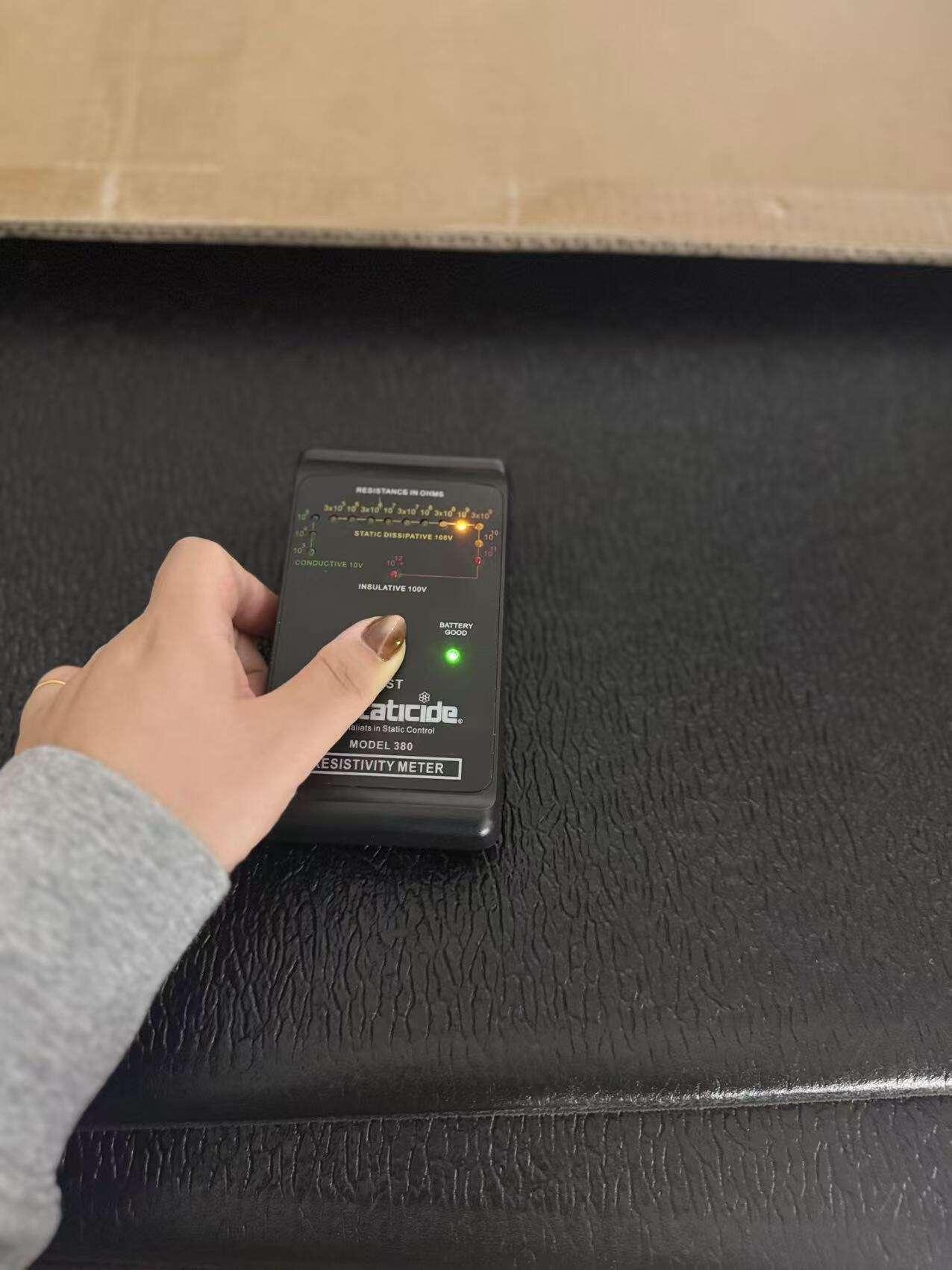

Conductive and Static-Dissipative Properties: Surface resistivity ranges from 10⁵ to 10⁸ Ω/sq, and foam layer resistivity ranges from 10⁹ to 10¹⁰ Ω/sq, ensuring safe ESD protection in electronic work areas.

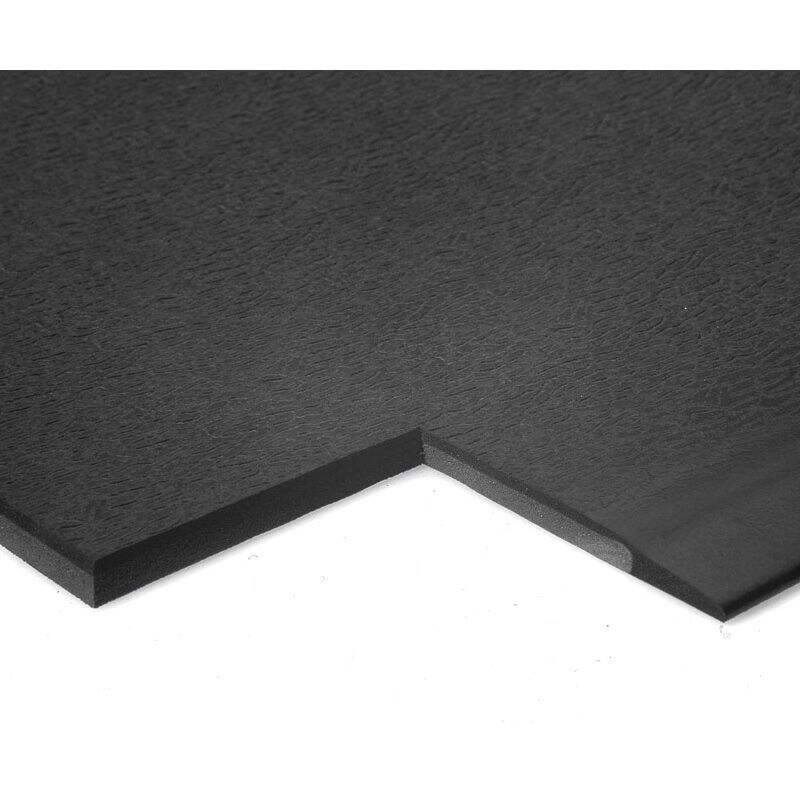

Slip-Resistant Beveled Edges: Ensures stable floor contact and reduces the risk of tripping or slipping.
Long-Lasting Performance: The ultra-durable wear layer extends the service life even under heavy foot traffic.

Applications:
Ideal for use in ESD-sensitive environments such as electronic assembly lines, laboratories, testing areas, and cleanrooms.

ESD Anti-Fatigue Mat (Dual-Layer PVC Type)

Item	Description
Product Positioning	Mid-range model – balancing durability and cost-effectiveness
Structure	Dual-layer PVC design: top wear-resistant surface + bottom foam layer
Material	PVC (both layers are anti-static)
Surface Resistivity	10⁵ – 10⁸ Ω/sq (conductive & static dissipative)
Sheet Size	60x90cm or other customized size
Roll Size	60CM 90CM 120CM, length could be customized
Foam Layer Resistivity	10⁹ – 10¹⁰ Ω/sq
