ESD PCB Storage Cart Antistatic PCB Trolley SMT PCB Handle Turnover Trolley Cart

Designed for Static-Sensitive PCB Storage and Transportation

  • Overview
  • Recommended Products

PCB Handle Turnover Trolley Cart

Stainless steel, conductive plastic panel
ESD castor with brake
Compartment width are easy adjustable by buckle
Quantity (capacity) of panels are optional
Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
Surface resistance: 104~106 Ω
Length could be customer made

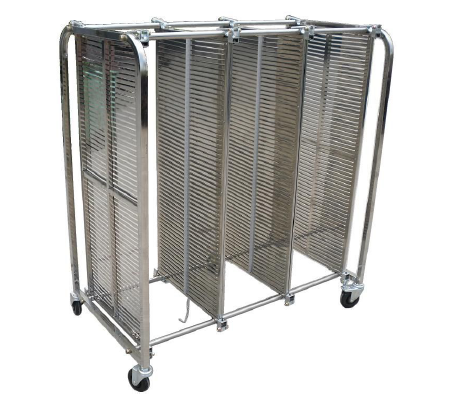

ESD PCB Trolley (1).jpgESD PCB Trolley (2).png
Size List
Model
Size(mm)
Flashboard Width
Slot width
Depth
Pitch
Slot NO./row
Side plate structure
Adj. method
HZ-27103A
950×620×1300
350mm/46 0mm/530m m/630mm
5mm
4mm
10mm
100
4pcs panel joined
Handle adjustable
HZ-27103B
1100×620×1300
HZ-27104A
900×675×1300
515mm
5mm
5mm
19mm
60/120
One whole piece side plate
Handle adjustable
HZ-27104B
900×450×1300
280/350m
m
5mm
5mm
19mm
50/100
Remark:HZ-27103 this model trolley material is plastic,HZ-27604 this model trolley material is stainless steel , all items Volume
resistance: 106-109Ω, Any size can be customized according to customer request. adding double flashboard, it can insert more PCBs.

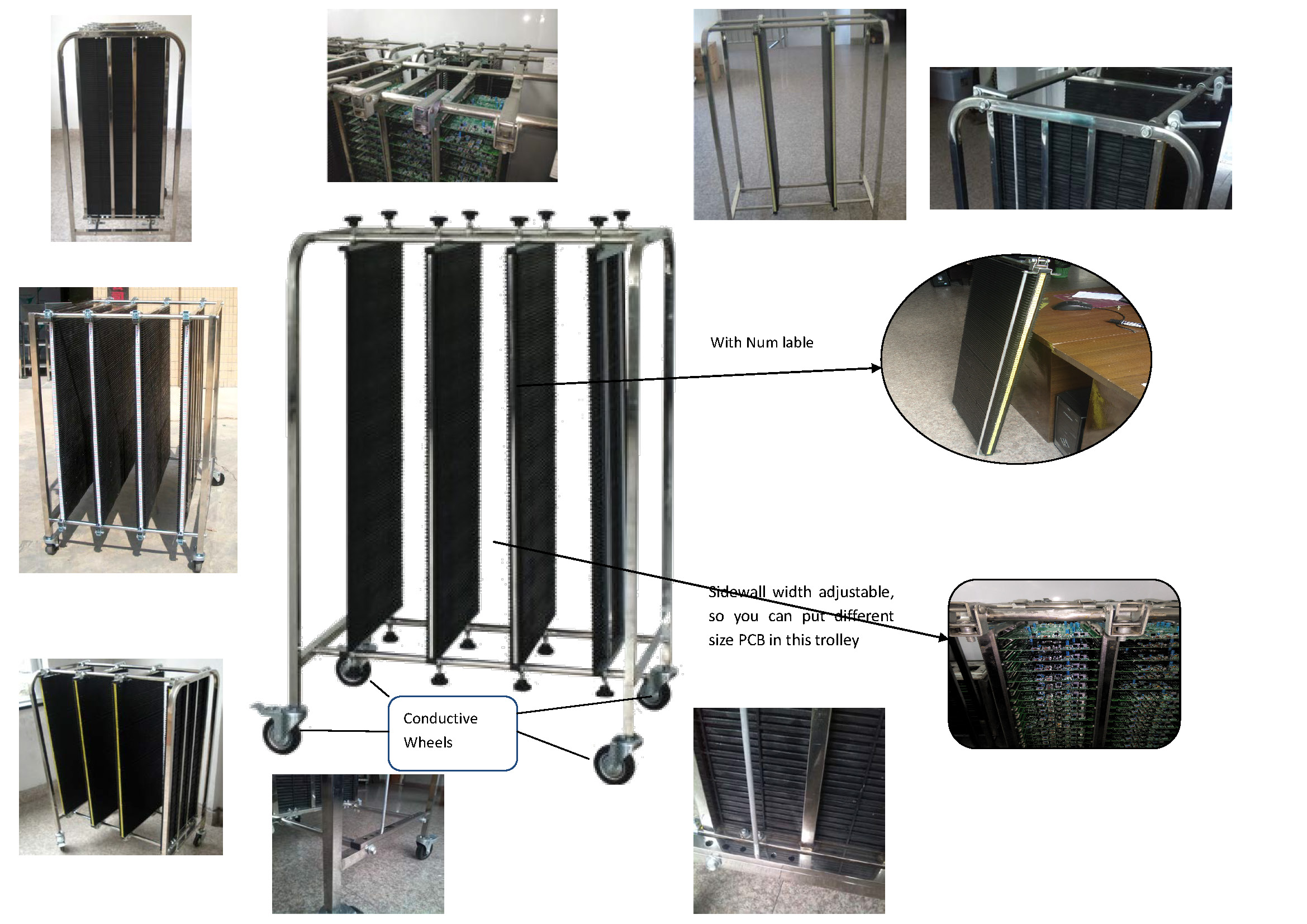

photobank (12).jpg

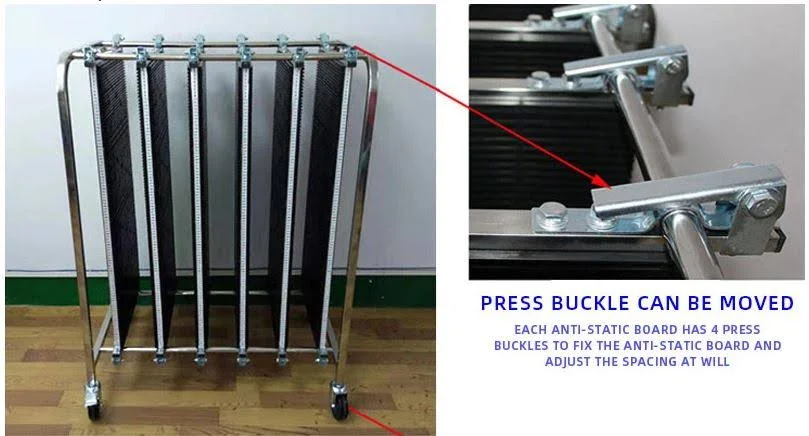

ESD PCB Trolley (1).webp

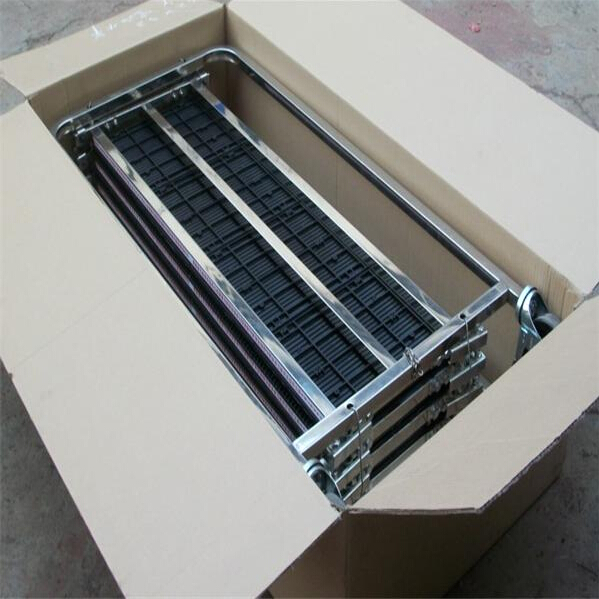

Package

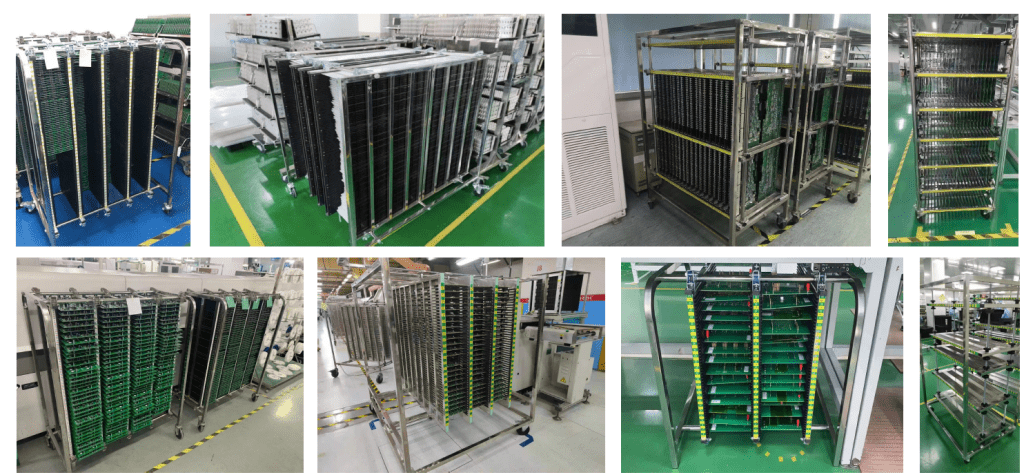

photobank (5).png

photobank (13).jpg
