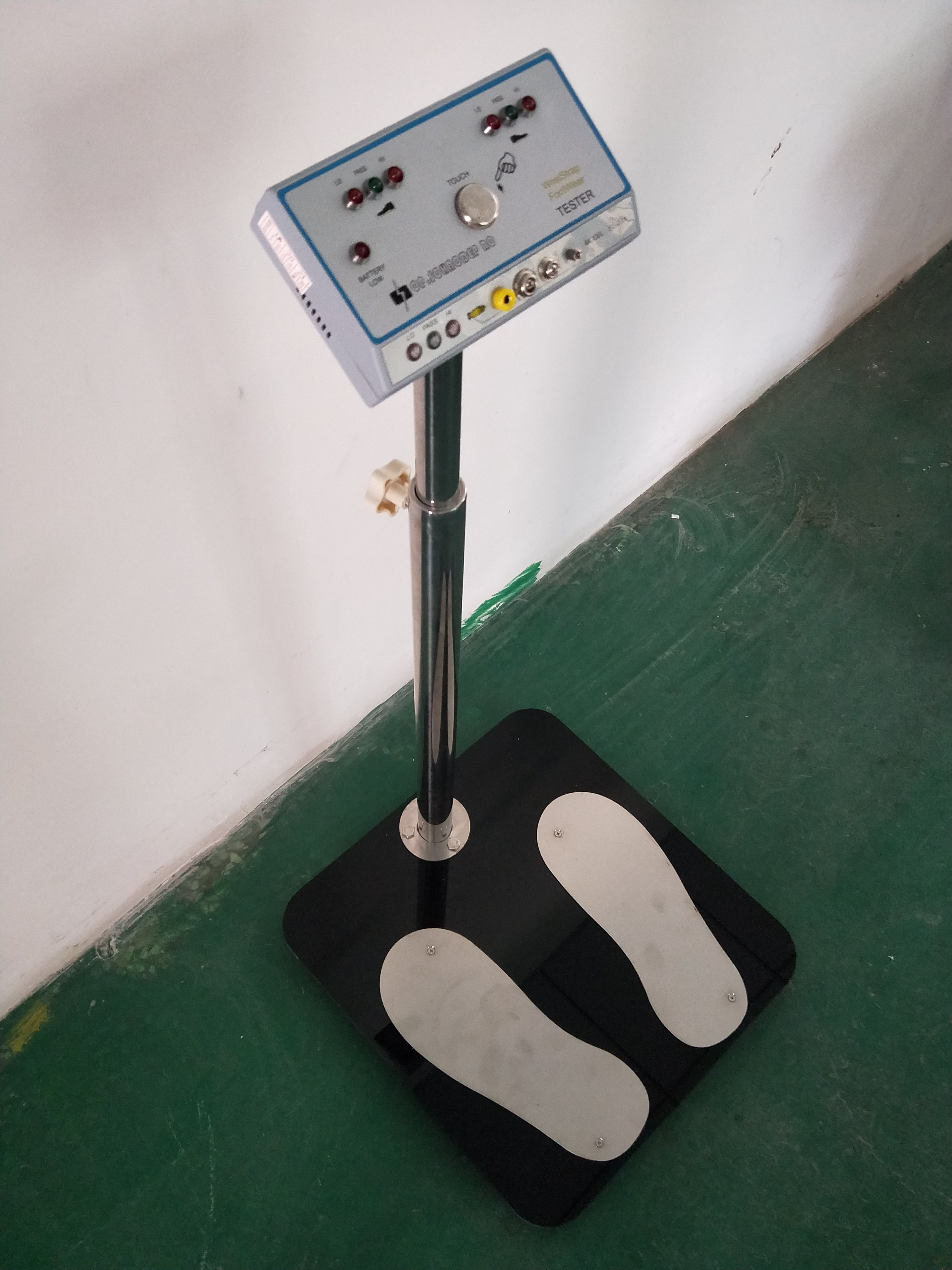

ESD Grounding Test Device
Core Positioning

A touch-enabled ESD (Electrostatic Discharge) grounding testing device, specifically designed for fast and batch testing of ESD grounding equipment. It combines efficiency and ease of use while meeting international standards, making it an ideal testing tool for electrostatic protection scenarios.

Key Advantages

  1. Strong Compliance with Standards
    Qualified for use as a calibration instrument, fully adhering to the technical requirements and procedures specified in Clause 6.1.3.2 of ANSI/ESD S20.20. It supports daily inspection needs, ensuring the standardization and reliability of test results.
  2. Integrated Dual-Testing Circuits for Efficiency
    Features a unique integrated dual-testing circuit design, eliminating the need for separate wrist strip/foot panel testers while significantly boosting testing speed:
    • Wrist strip testing: Compatible with the standard 750KΩ-10MΩ circuit;
    • Shoe cover testing: Compatible with the standard 750KΩ-100MΩ circuit.
      Enables "one device for two types of equipment testing".
  3. Easy Operation & Intuitive Status Feedback
    • Supports 3 operating modes with touch functionality for simple, user-friendly operation;

Clear indicator lights for result recognition: Green light = Normal operation, Red light + audible alarm = Excessively high or low resistance. Test results are easy to identify, no professional skills required.


Wrist test margin: 750KΩ-10.MΩ Shoe cover test margin:
750KΩ-100MΩ
Resistance
tolerance (±20%)		 Test output Resistance
tolerance (±20%)		 Test output
≤740KΩ Red (FAIL LO) ≤740KΩ Red (FAIL LO))
750KΩ Green        (PASS
(Normal))		 750KΩ Green        (PASS
(Normal))
10MΩ Green        (PASS
(Normal))		 100MΩ Green        (PASS
(Normal))
≥10.5MΩ Red (FAIL HI (Fail
Hi))		 ≥110MΩ Red (FAIL HI (Fail
Hi))
