Antistatic Vinyl Tiles ESD Flooring

Overview
Recommended Products

ESD PVC floor tiles are specially designed for areas requiring reliable electrostatic protection combined with high durability.

This product has permanent anti-static function because it uses conductive static network formed at the interface of plastic particles.

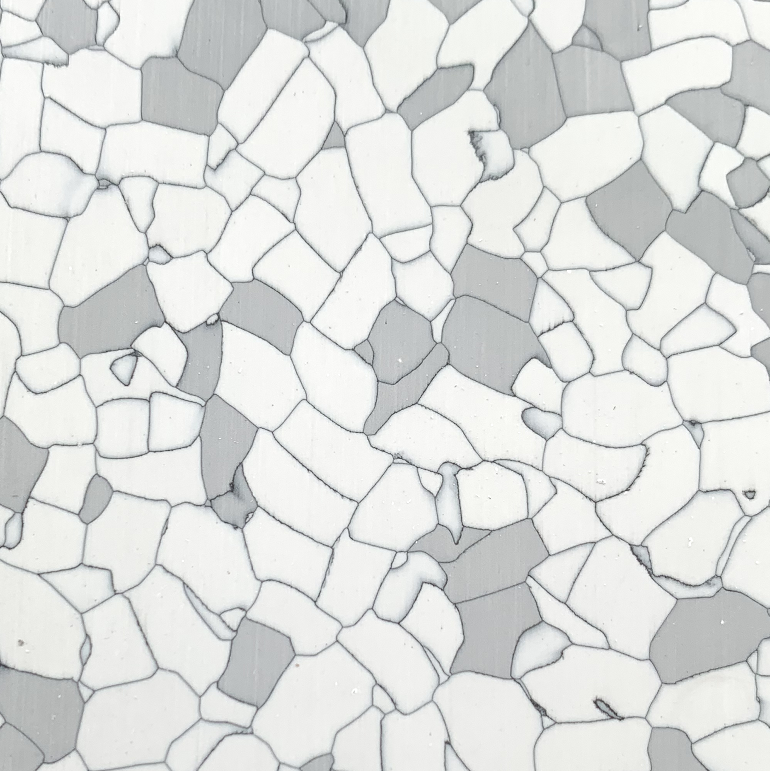

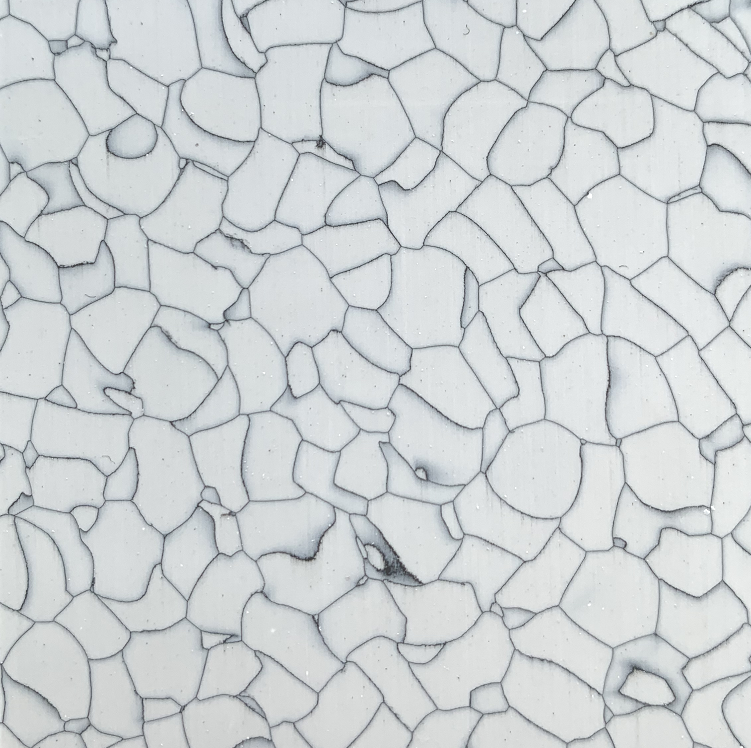

Its appearance looks like the pattern of marble.
So it has good decoration effect and is wide used for program machine room, computer room, control room of electric power, cleaning and purification workshop of telecommunication, electric power, electronics, micro-electronics and medicine Industries and other places where it is necessary to be protected from electrostatic discharge.

Each tile is typically sized 600×600mm or 900×900mm, making installation flexible and maintenance easy.

TECHNICAL DATA
Item	System resistor	Decay time	Rate of size change of healing	Amount of anti-wear	Combustion property	Starting voltage
Standard	DIN51953	GJB2605-19 96 5000V-50V	GB4085-83 SJ/T11236-20 01	GB4085-83 SJ/T11236-20 01	GB4609-84 FV-O SJ/T11236-20 01	SJ/T10694-19 96
Index	10E4－10E6 （conductive） 10E6-10E9(static-di ssipative)	<2S	<0.25%	<0.02g/cm2	<10S	<100V
