Product Description
ESD Magazine Rack – PCB Storage Rack for SMT and Assembly Lines
The ESD Magazine Rack is specially designed for safe storage and transportation of PCB boards during SMT production and assembly processes. Made from high-quality conductive or anti-static materials, it effectively prevents static electricity damage to sensitive electronic components.
This rack features an adjustable width design, allowing it to accommodate various PCB sizes with excellent stability and durability. Ideal for use in electronics manufacturing, assembly workshops, and PCB handling environments, it ensures a clean, efficient, and ESD-safe workspace.
Total Customize Available
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots |
Weight (KG) |

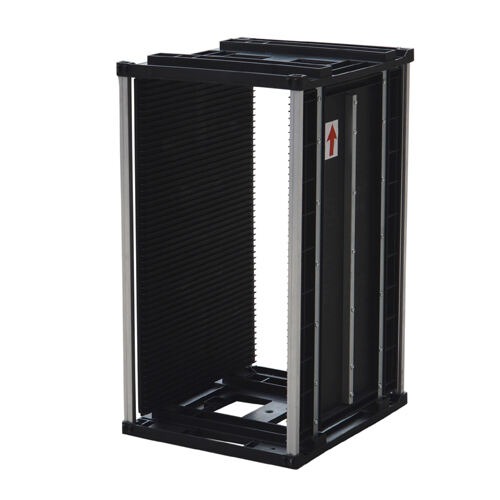

| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |

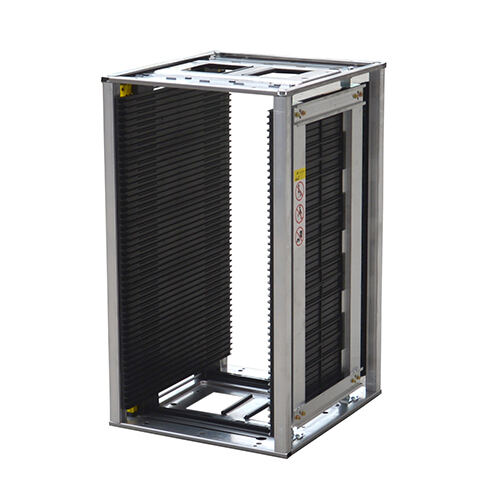

| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |

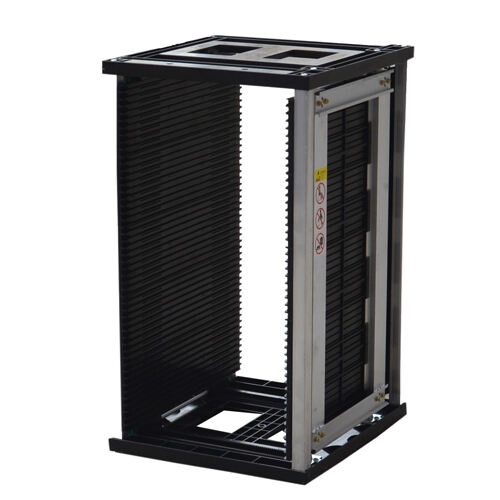

| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |

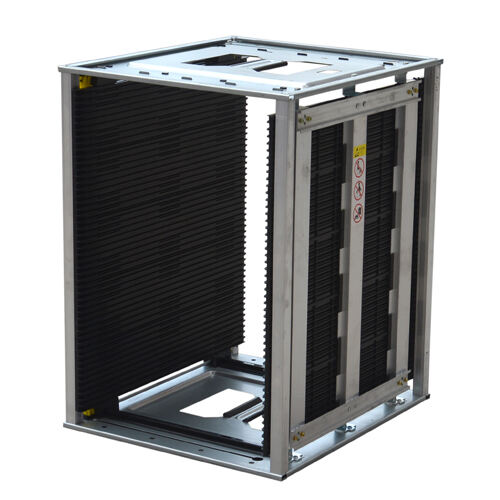

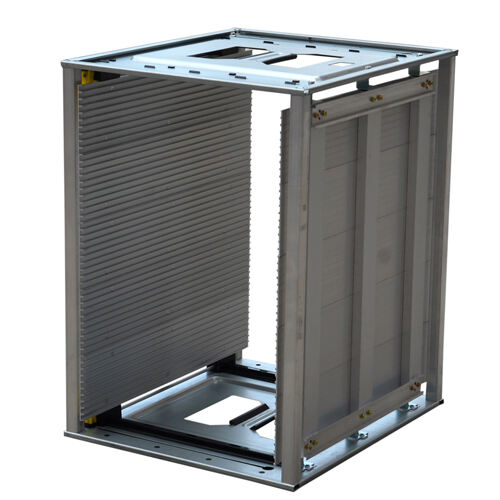

| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |

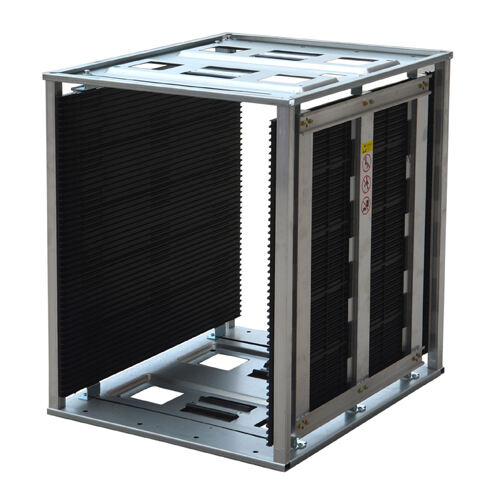

| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Application:
PCB Manufacturing & Assembly
Electronic Component Storage
SMT & DIP Production Lines
Laboratories & R&D Centers
This PCB magazine rack not only protects circuit boards from electrostatic interference but also enhances production management efficiency, making it an ideal choice for the electronics
