ESD Wire Shelf, Carts
Metal trolleys and shelving to help control the ESD risks of internal transport and storage inside the EPA;
Shelving and trolleys feature chrome-plated wire shelves;
About layers, customized requirements available;
About castors,2 braked and 2 unbraked castors (each castor capacity 70kgs.);
Sizes requested are available;
Note: All ESD trolleys have 2 ESD castors and metal collars;
Industrial Wire Shelf Size:
| Width (mm) | Length (mm) | Chrome-plate d Wire Shelves | Stainless Steel Wire Shelves | Width (mm) | Length (mm) | Chrome-plate d Wire Shelves | Stainless Steel Wire Shelves |
| 350 | 600 | C 1424 | S 1424 | 530 | 900 | C 2136 | S 2136 |
| 750 | C 1430 | S 1430 | 1050 | C 2142 | S 2142 | ||
| 900 | C 1436 | S 1436 | 1200 | C 2148 | S 2148 | ||
| 1050 | C 1442 | S 1442 | 1500 | C 2160 | S 2160 | ||
| 1200 | C 1448 | S 1448 | 1800 | C 2172 | S 2172 | ||
| 1500 | C 1460 | S 1460 | 600 | 600 | C 2424 | S 2424 | |
| 1800 | C 1472 | S 1472 | 750 | C 2430 | S 2430 | ||
| 450 | 600 | C 1824 | S 1824 | 900 | C 2436 | S 2436 | |
| 750 | C 1830 | S 1830 | 1050 | C 2442 | S 2442 | ||
| 900 | C 1836 | S 1836 | 1200 | C 2448 | S 2448 | ||
| 1050 | C 1842 | S 1842 | 1500 | C 2460 | S 2460 | ||
| 1200 | C 1848 | S 1848 | 1800 | C 2472 | S 2472 | ||
| 1500 | C 1860 | S 1860 | 750 | 900 | C 3036 | - | |
| 1800 | C 1872 | S 1872 | 1200 | C 3048 | - | ||
| 530 | 600 | C 2124 | S 2124 | 1500 | C 3060 | - | |
| 750 | C 2130 | S 2130 | 1800 | C 3072 | - | ||

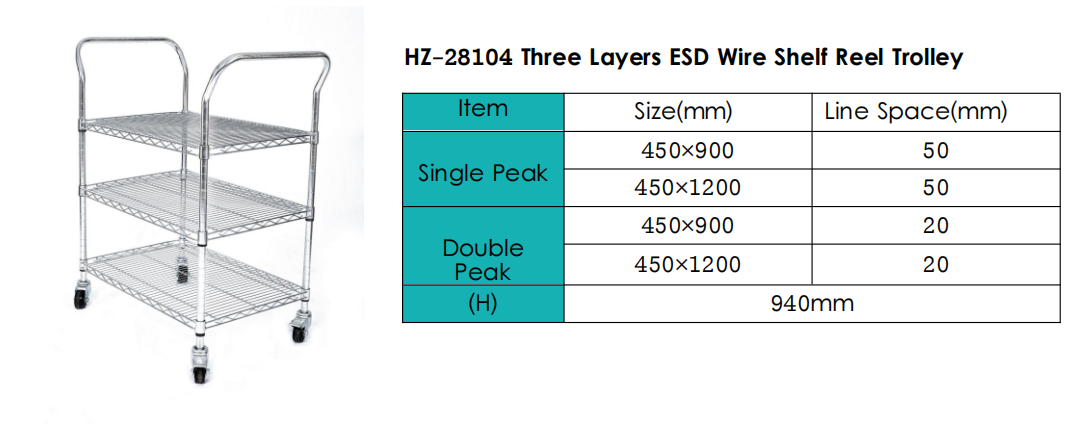

| Single/Double Peak Wire Shelf Size | 450mm*900mm | 450mm*1200mm | |||||
