Anti Static Ionization Bars Static eliminators

Anti Static Ionization Bars Static eliminators

Overview
Recommended Products

Static Eliminator Simply Instruction

Ionizing Air Bar have unique high volume air

bar which can neutralize ion very fast. The hard alum.
Case covers the ion pin. It’s more durable.

I：Main Principle

This Ionizing Air Bar can produce a huge of positive and negative charges air mass, which can eliminate all radiating area ions.
When it detect target static charge and provide optimal ion control enables quick elimination of static on high speed production and processiong

line.
This bar can also provide down-flow and clean air to improve the speed of static elimination.

II：Product Property

1． Static elimination speed is fast

2． Working Capacity is stable and safe

3． Assembly is simply and convenient

4． The bar have good grounding protection

5． Safety Design, No electric shock danger

6． Compressed air blow out, the working area is wide

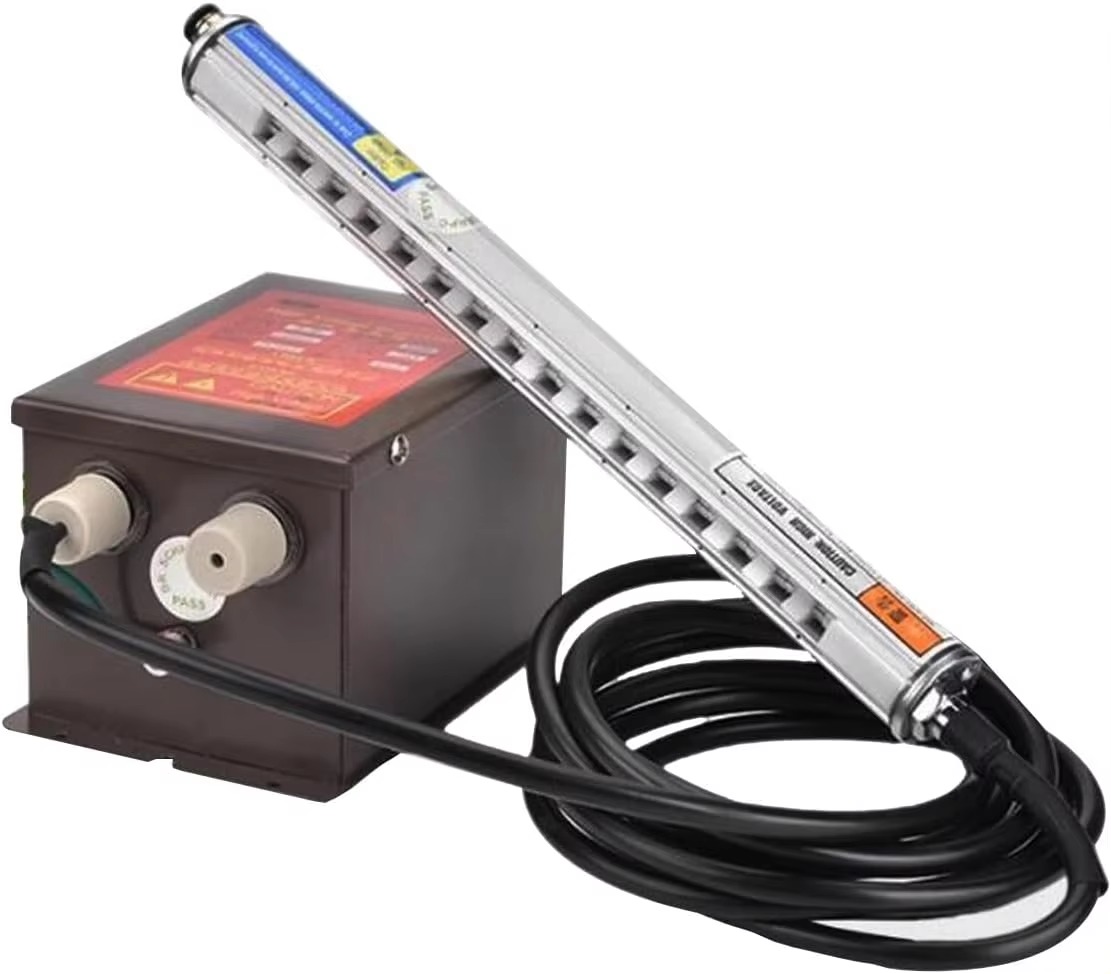

herzesd-ionizer (5).jpg

Operating Voltage	7000V/50Hz or 7000V/60Hz
Current Consumption	0.4uA
Operating Temperature	22-25℃
HV cable length(Max.length)	3Meters (4M can be customized)
Relative Humidity	≤60%RH
Working Distance	100mm（without compressed air） 800mm（with compressed air）
Ozone amount:	0.04PPM
Compressed-air pressure	5~7Kg/cm2

Main Applications of Ionizing Bar

Ionizing bars are widely used to eliminate static electricity in various industrial environments, helping to prevent dust attraction, product defects, and electrostatic discharge (ESD) issues. Typical application scenarios include:

Electronics & Semiconductor: Preventing static damage to sensitive components during assembly and packaging.
Printing & Packaging: Reducing static that causes paper, film, or labels to stick or misfeed.
Plastic Processing: Eliminating static from molded or extruded products to avoid dust contamination.
Textiles & Film Production: Preventing static cling and ensuring smooth processing of fibers and films.
Automotive & Coating Lines: Removing static before painting or coating to improve finish quality.
