ESD SMT Magazine Racks PCB Turnover Antistatic Racks 355*320*563mm

ESD SMT Magazine Racks PCB Turnover Antistatic Racks 355320563mm

SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.

Overview
Recommended Products

Description		HZ-2603
Contour Size		(L×W×H)mm: 355320563
Storage slot		50pcs of Plates can be stored
The specification of PCB plates		355×(50－250)mm
Guide slot of side plate		Depth 3mm, Width 5.5mm, Pitch 10mm
Material		Top and bottom Base is metal base
Fix method		Screw or gear track adjustable
Side plate		Five pieces assembled
Weight		5.0KG
Temperature		80 ℃,120℃ and 200 ℃ are available.

ESD Magazine Rack – Adjustable PCB Storage Solution

The ESD Magazine Rack is engineered for safe, organised, and efficient PCB handling in static-sensitive environments.

Built with a durable ESD-safe metal frame featuring a surface resistance of 10⁴–10⁶ ohms,

it offers reliable protection during manufacturing, assembly, and transport.

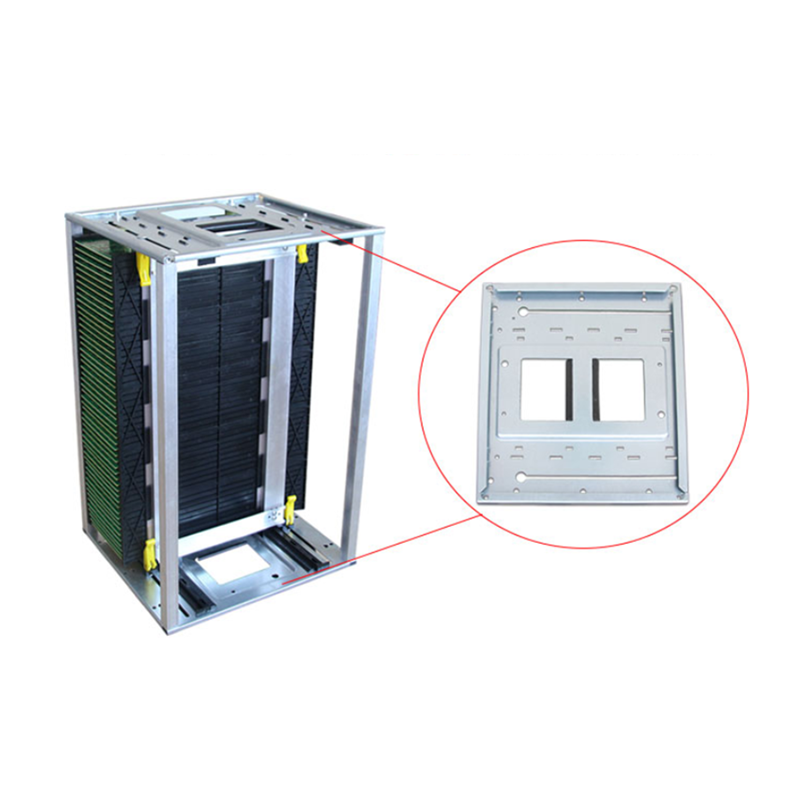

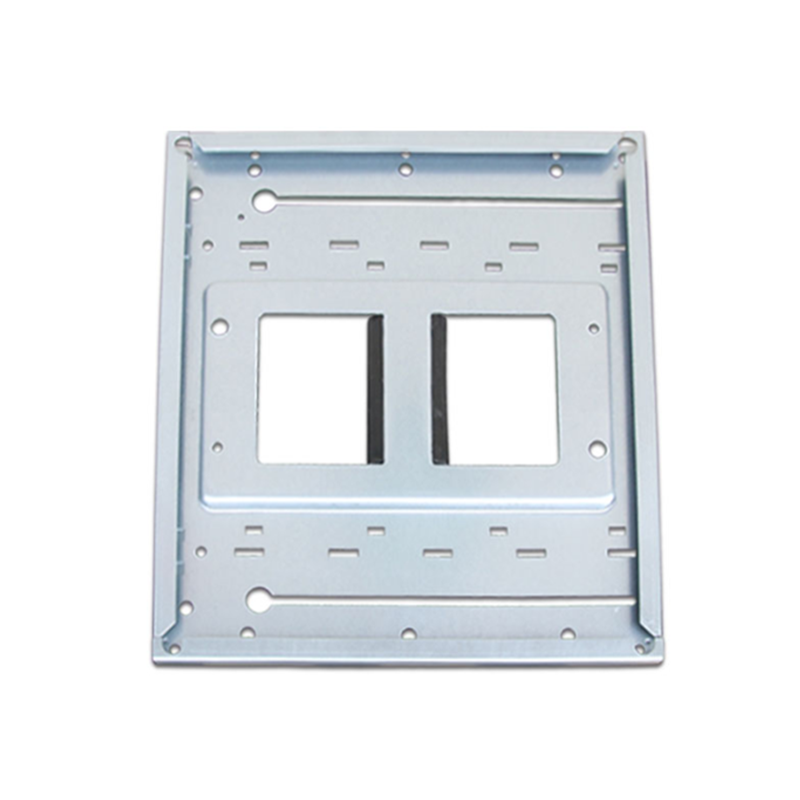

ESD Magazine Rack (14).png ESD Magazine Rack (15).png

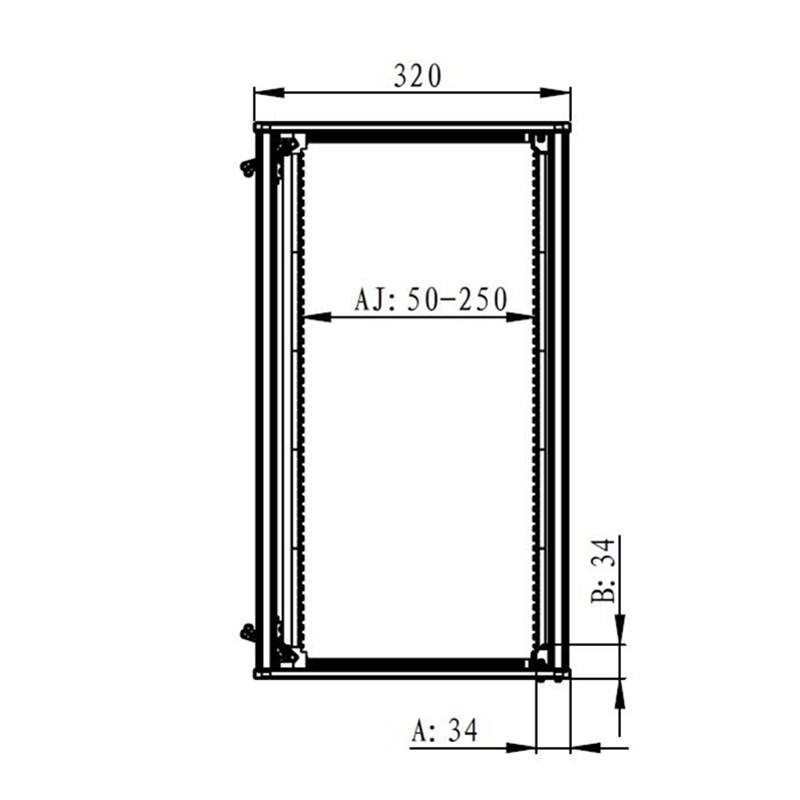

Its adjustable gear system allows quick width changes from 50 mm to 250 mm,
accommodating a wide range of PCB sizes. Each rack can securely hold up to 50 PCBs, making it ideal for high-throughput production lines.

ESD PCB Magazine Rack (1).png ESD PCB Magazine Rack (2).png ESD PCB Magazine Rack (3).png
